SimCenter Facilities

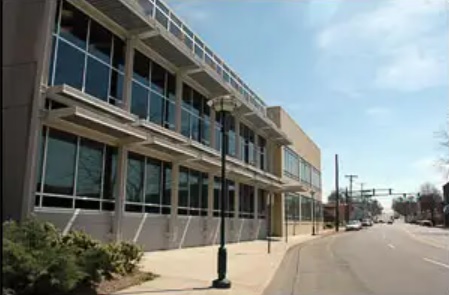

The SimCenter is a research center for multidisciplinary research at UTC. It not only serves as a research incubator for innovative concepts and laboratories but also acts as UTC’s core facility for High Performance Computing and Storage. UTC has two new concentrations in Computational Science: Computer Science and Computational Math. These concentrations are in addition to UTC’s initial PhD in Computational Science: Computational Engineering. All of our PhD and some of our MS and undergraduate students are now housed in the SimCenter. The facility includes faculty offices, student cubicles, a 1,500 square-foot computer room, a conference/meeting room accommodating 25 people, an 80-seat auditorium, and two secure expandable suites of rooms dedicated to proprietary and/or classified research, a research library, and other work space. The interior layout is designed to facilitate extensive interdisciplinary interactions among faculty and students, with student cubicles in large open spaces adjacent to faculty offices. Researchers also have access to the high performance clusters.

Computational Resources

Computational Clusters (Open access)

EPYC – 2176 core (128 cores/node; 17 nodes) AMD EPYC 7662
- 512 GB of RAM/node
- InfiniBand EDR interconnect (100GbE)
Firefly – 400 cores (80 cores/node; 5 nodes) Xeon 6148 CPU cluster
- head node 3TB RAM
- 192 GB of RAM
- 4x Tesla V100 SXM2 32GB GPUs per node
- Dual 10G Gigabit Ethernet bonded to 20G of interconnect
Lookout – 160 core/640 thread (6 node) IBM Power9 (AC922) cluster
- Dual Power9 20 core/80 thread CPUs (2.4GHz, 3.0 GHz turbo)
- 4 Nvidia Volta GPUs with 16 GB GPU memory; NVLink provides up to 300GB/s of bi-directional bandwidth GPU-GPU and CPU-GPU
- 256 GB RAM
- InfiniBand EDR interconnect (100GbE)
Research as a Service (RaaS) cluster – 224Core/448Thread OpenStack local cloud
- One user/admin facing management server that provides web-based user dashboards for on demand research computing
- Three back end OpenStack management servers used to facilitate VM provisioning, management, storage I/O, etc.
- Four high end CPU/GPU Dell R740 compute servers where VMs/containers run
  - Each with dual Intel Xeon Platinum 8176 28C/56T CPUs
  - 384GB RAM
  - One NVIDA Tesla P100 12GB GPU
  - One NVIDA Tesla T4 16GB GPU
- Three Dell 740XD storage servers for local RaaS storage
  - Each with 192GB RAM
  - 168GB raw disk space; usable space half this using 2 factor replication
- This RaaS implements a 100GbE network fabric throughout with the compute and storage servers having dual 100GbE links to facilitate extra network performance for the VMs/containers as well as all storage traffic. This network connects back to the SimCenter core at 100GbE as well.
Tennessine – 924 CPU core/59,136 GPU core (33 node) diskless cluster (Dell)
- Two 14-core Intel Xeon E5-2680 v4 processors
- 128 GB RAM per node
- EDR InfiniBand (100 Gb/s) interconnect
- One Nvidia P100 GPU (16 GB) with 1792 double precision cores
- 400 GB SSD per node for local application caching (pending installation)
- Theoretical peak performance of ~1TFLOPs (CPU only) or ~5.7TFLOPs (CPU and GPU)

Computational Clusters (Restricted access; ITAR compliant)

Cerberus – 32 core compute server (Dell)
- Four 8-core Intel Xeon X7560 2.27 GHz processors
- 256 GB RAM
Papertape – 512 core (32 node) diskless cluster (Dell)
- Two 8-core Intel Xeon E5-2670 processors
- 32 GB RAM per node
- FDR InfiniBand interconnect (2:1 blocking)
- ~12 TB of usable storage (BeeGFS)
Papertape_v2 – 512 core (4 node) AMD EPYC 7702
- Two 64-core AMD EPYC 7702 processors
- 512 GB RAM/node
- EDR Infiniband interconnect

Infrastructure

20 GbE network backbone
New air conditioning units.
Brand new server room network infrastructure capable of up to 100GbE
Dell R730 VMWARE cluster which runs all system critical services
- Three node cluster
- Highly redundant hardware
- Important services configured “highly available” so they never crash
Dynamic load balancing

Data Storage

Highly scalable DDN 14KX GPFS storage system
- 113 TB (10K SAS) of high speed, tier 1 storage
- 1 PB of high capacity, lower tier storage
- Connects to the HPC infrastructure at EDR InfiniBand speeds (100 Gb/s)
- Scalable up to over 1700 hard drives and 60 GB/s bandwidth
- Available (via NFS) to all desktops in the SimCenter
Backup system based on ZFS
- 800TB maximum capacity
- Primary target in MRDB Data Center with secondary target in Hunter Hall.
- ZFS replication between primary and secondary targets.
Expandable Dell PowerVault LTO7 tape backup system
- LTO7 tape media can store between 6 and 15 TB (based on compression)
- Can backup/archive between 240 and 600 TB of data without expansion
